Torin Trafo-Regler ARIC 8 Amp.

Der Regler schaltet "mechanisch" über den Trafo und wird nicht eletronisch gedrosselt.
Dadurch absolut brummfrei. Sehr emfehlenswert!

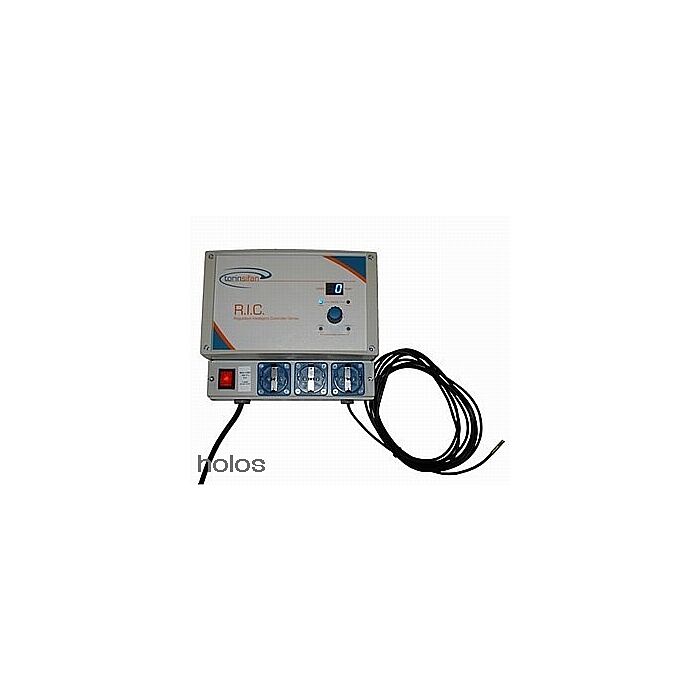

TORIN SIFAN CLIMATE CONTROLLER ARIC 8A AUTOTRANSFORMER

ARIC series: single-phase fan speed controller with autotransformer

RIC series are single-phase electronic voltage regulators that regulate the output effective voltage supplied to the load by microcontroller technology. The regulators are designed for the control of asynchronous motors connected to fans. Regulation is possible with an autotransformer in ARIC series and with a triac (cutting-phase principle) in TRIC series, in automatic or manual mode.

Technical specifications ARIC series:

• Operating temperature 0T40 °C
• Storage temperature -20T70 °C
• One – phase supply 230 ± 10% V AC
• Frequency 50 / 60 Hz
• Maximum total load current ARIC8: 8 A / ARIC16: 16 A
• Maximum load current per plug: Short period: 16 A (0T40°C)
• Continuous period: 16 A (0T30 °C) / 13 A (30T40 °C)
• Power dissipation ARIC8: 28 W / ARIC16: 40 W
• Fuses ARIC8: F8A “aM” & F1A “Fast” / ARIC16: F16A “aM” & F1A “Fast” /
• AC line cable length 1.5 m
• Probe cable length 5 m
• Probe type NTC sensor, B=3435 K, 10 ± 1% kΩ @ 25 °C, built in metallic case, double insulation.
• Temperature regulation range (Tset) 0T40 °C
• Protection index Depends on installation
